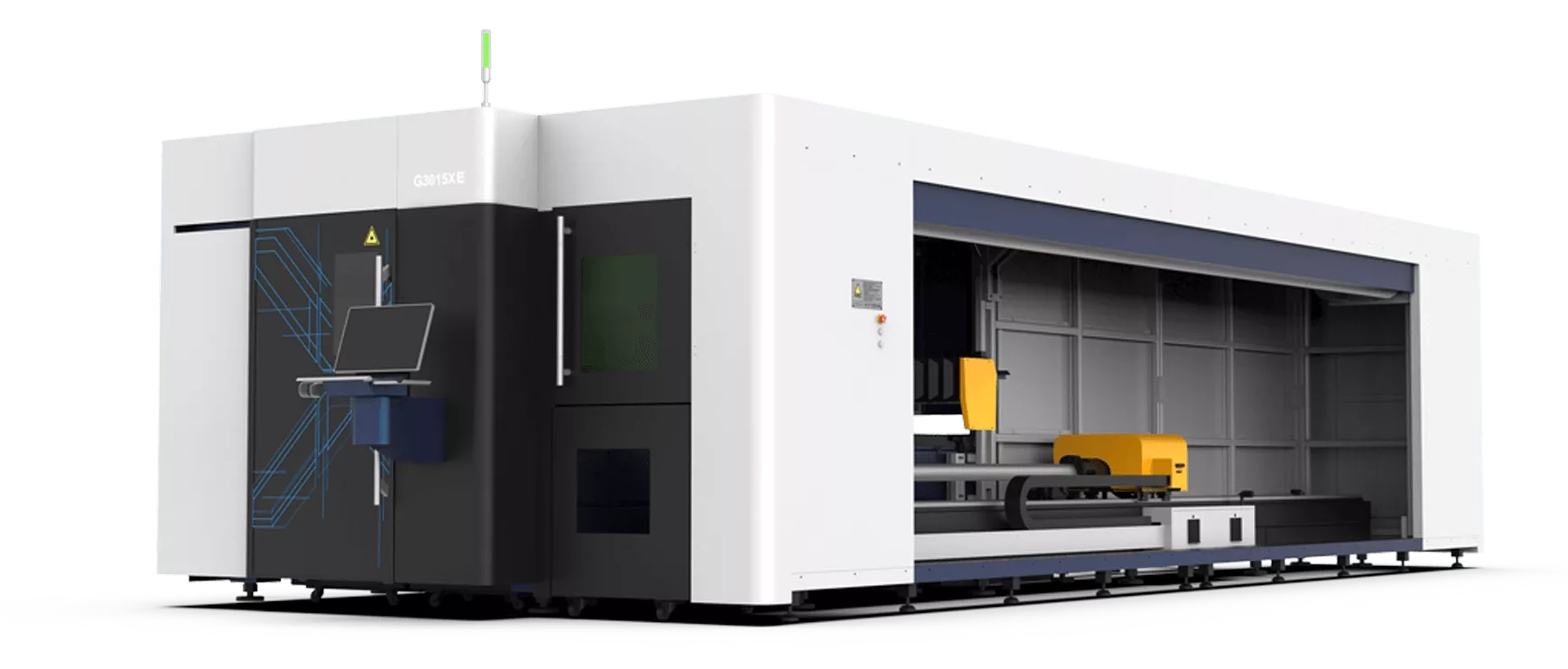

HSG G3015XE-22EQ combined laser cutter
Shipping time :
3 months
Request for quotation
A combined version of the new GX series from HSG, suitable for laser cutting of sheets and tubes.
Alpha A Control System
This system is easy to be operated and rich in functions. Even green hands can cut high-quality samples.
 |
 |
 |
 |
| Monitor core components in real time | Millisecond-level follow-up response technology | Click to create processing report | Compatible with codes of international brands |

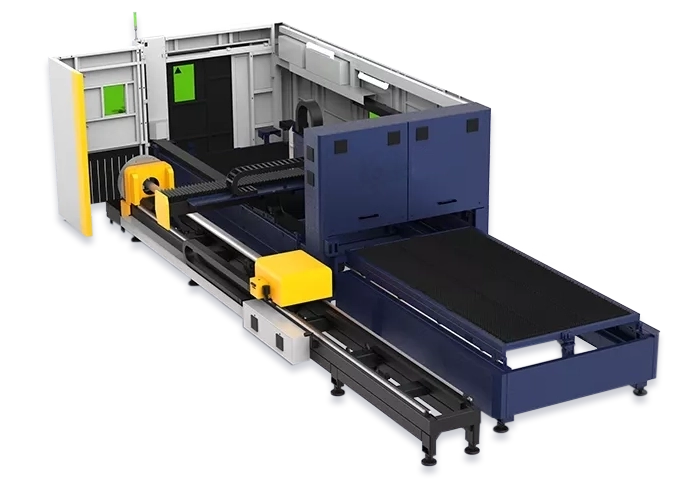

Double Fully-automatic Pneumatic Chucks
* One-key clamping and automatic centering
* Pneumatic clamping with no looseness or slip
* Concave support frame can prevent tube from sagging and deformation
* Clamp both round, square tube and profiles like channel and angle steel

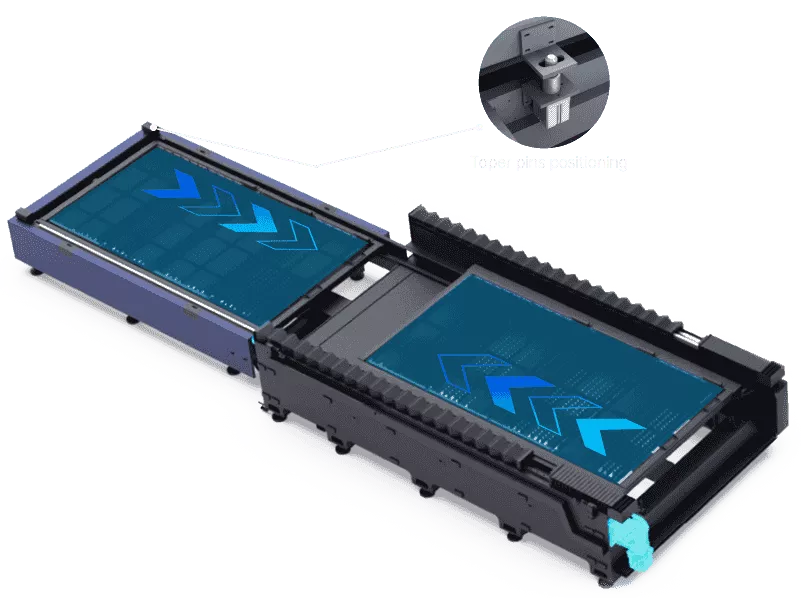

Double Exchange Platforms Taper Pins Positioning
With taper pins positioning, platforms are prevented from vibration during work and cutting precision is ensured.

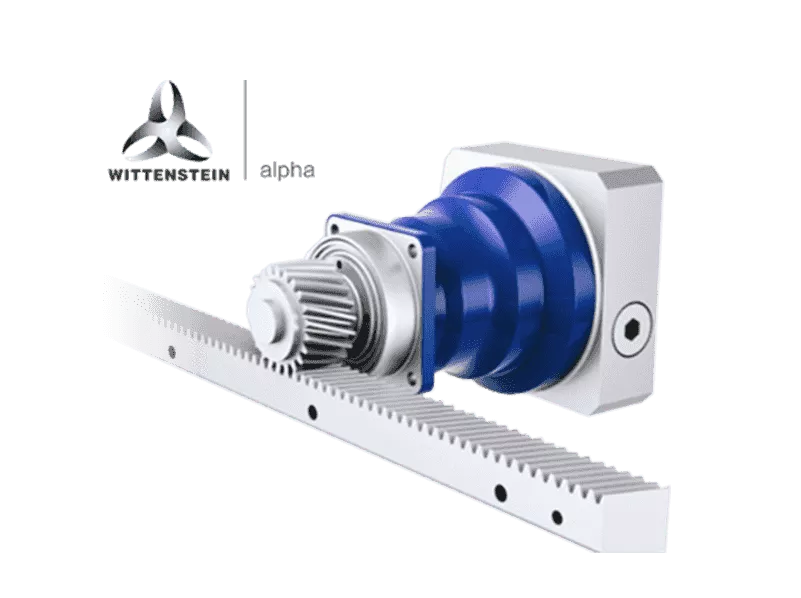

German WITTENSTEIN alpha Speed Reducer
The speed reducer can achieve stable, highly precise and long-term work of machine bed.
Specifications
Model: G3015XE
Power: 1500 W–6000 W
Processing format (L×W): 3048 mm×1524 mm
X/Y-axis positioning accuracy: ±0.03 mm/m
Cutting Capacity of Round Tube: Φ20–Φ210 mm
Cutting Capacity of Square Tube: □20×20 – □150×150 mm
