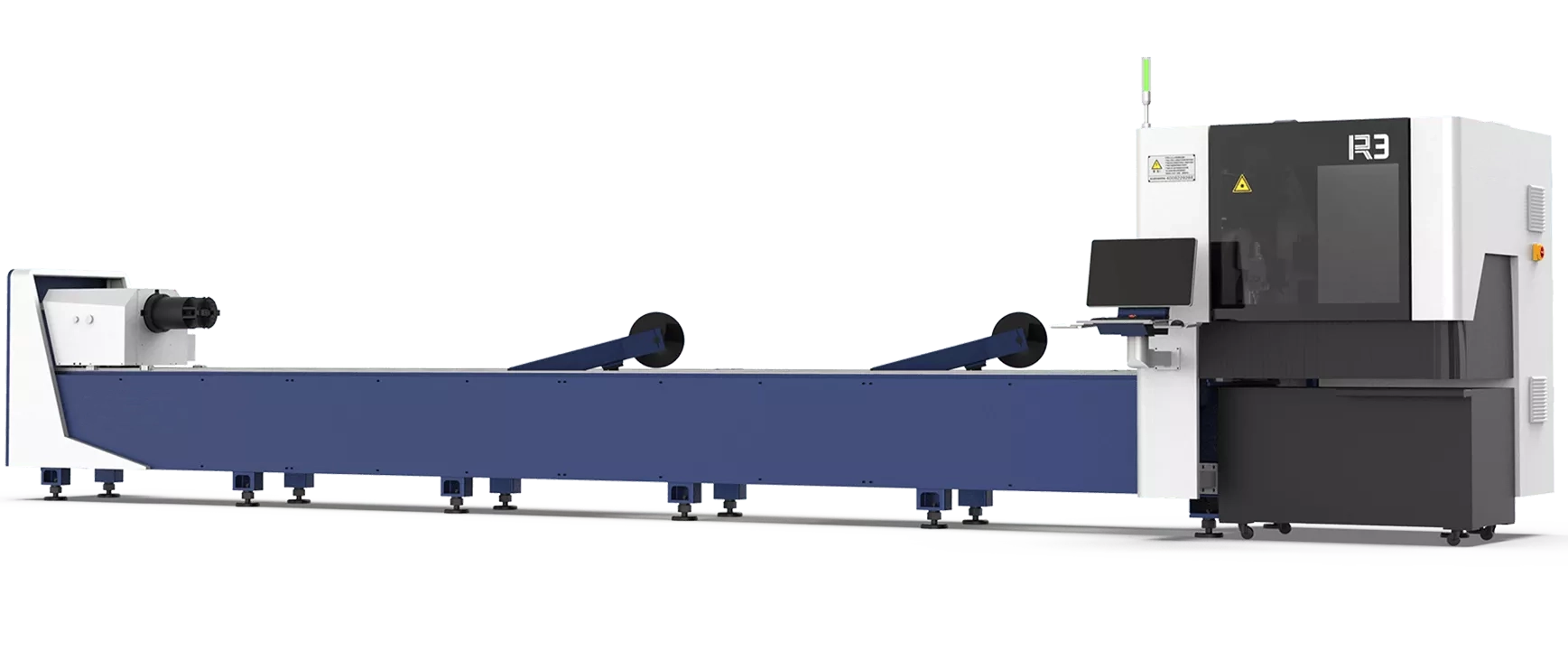

HSG R3 fiber tube laser cutter
Shipping time :
3 months
Request for quotation
HSG's high quality but affordable fiber tube laser. Full-featured tube and square profile laser cutting with small footprint and easy manual feeding.
HSG-X Bus Control System
HSG-X control system is bus-based and developed by HSG Laser. With intelligent and easy-to-operate service, it can offer users effective solutions to address problems of difficult operation, low efficiency and high costs.
 |
 |
 |
 |
| 21.5-inch touch screen with concise interface | Monitor core components in real time and give early alarm | Detect tube deviation if needed | Click to create processing report |

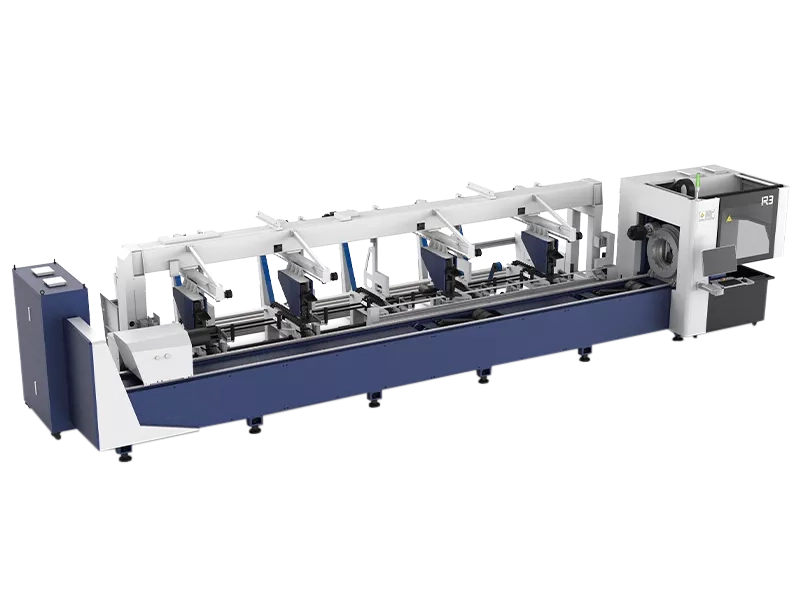

Automatic Loading and Unloading Device
* Optional automatic loading and unloading machines of tubes, save processing duration, make work easier and cut down labor costs.
* Hydraulic concave supporting frame is used for loading and unloading to protect tubes from scratch as optional features.
40HQ Standard Container Transport
The machine is shipped in a 40HQ standard container, saving overseas freight for customers.
Specifications
Model: R3 Plus
Power: 1500W-6000W
X/Y-axis Positioning Accuracy: ±0.05mm/m
Cutting Capacity of Round Tube: Φ20-Φ325mm
Cutting Capacity of Square Tube: □20*20-□230*230mm
Weight of Single Tube: 200kg
