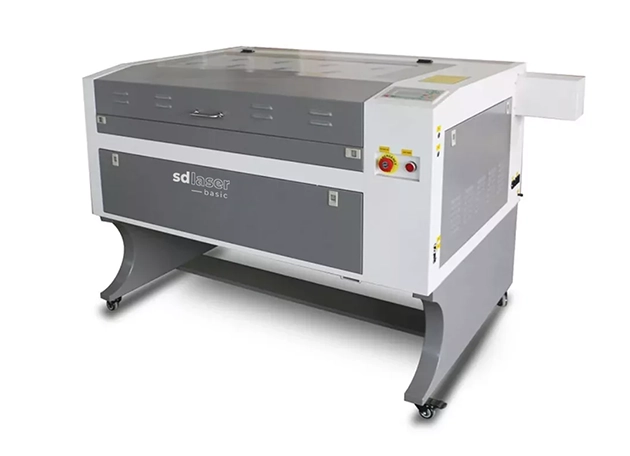

SD-LASER BASIC 9060 60W laser engraver
The SD-LASER BASIC 9060 is an entry-level 60W laser engraving machine. The best value for money if you are new to laser cutting and laser engraving! Recommended for start-ups!
Entry-level laser engraver at an unbeatable price!
Our SD-LASER BASIC laser engraving and laser cutting machines are the entry level in the world of laser machining. Our own branded laser machine offers an optimal price / value ratio, especially for beginners.
The guarantee of reliability is our name, Signdepot has installed more than 400 laser machines since 2005. The SD-LASER BASIC 9060 is a high-performance CO2 laser engraving machine with a 60W laser tube and a 90x60cm useful work surface.
Contents of the laser machine system:
- SD-LASER BASIC 9060 laser engraving machine
- Laser tube
- Air pump
- Management Software (Ruida)
- Honeycomb table
- Exhaust fan with exhaust pipes
- Red Dot Laser Marker Auxiliary Light
- USB cable
- Mirror and lens
- Instructions
High quality laser head
Industrial grade linear conductor
High performance hoist motor
Ruida control system
The laser machine has a useful working area of 90x60 cm. The height of your honeycomb table can be motorized up to an object height of up to 230 mm, which makes it easy to set the right focal length or larger objects, e.g. wooden boxes can also be engraved. The Red Dot laser light makes it easy to position the starting point. The air blower is responsible for safe work, as it avoids possible flames during cutting and reduces the color of the workpiece due to smoke. The honeycomb grille prevents the laser from reflecting off, thus eliminating sooting of the machined material. The laser engraving machine includes Ruida control software, which is the market leader in CO2 laser machines. It is an industrial solution, user-friendly and has many more features than cheaper controllers.
So many possibilities!
Raw materials suitable for cutting
Acrylic plexiglass, MDF, wood, cork, plywood, paper, cardboard, corrugated board, plexiglass, plastics, leather, textile, rubber, foams
Raw materials suitable for engraving
Acrylic plexiglass, MDF, wood, cork, plywood, paper, cardboard, corrugated board, plexiglass, plastics, leather, textile, rubber, foams, glass, marble, granite, surface treated metals, natural metals *
* For metals with a natural untreated surface, you need to use a surface treatment aid!
Ideas for use
- making signs and inscriptions
- glass engraving
- making stamps and keychains
- photoengraving
- making business cards
- custom and corporate promotional gift production
- felt, foil and stencil cutting
- making decorative items, home decorations and much more!
Technical support, service
Appropriate technical advice, commissioning, post-commissioning training, and later technical support and service are essential for the purchase of a laser machine. Our company provides full support for laser machines with our own full-time service technician colleagues with more than 14 years of experience.
We provide a 1-year warranty on the product.
Work area: 900x600 mm
Table type: Honeycomb lattice
Motorized table height adjustment: Yes
Maximum object height: 200mm
Type of laser source: CO2 glass laser tube
Laser power: 60W
Control system: Ruida RDC6445G
Laser marker: Red Dot auxiliary laser light
Positioning accuracy: 0.1mm
Environmental conditions: 40 - 65% humidity, 15 - 30C degrees.
Possible connections: USB cable and network
Guide rail: Industrial quality thickened linear guide
Water Flow Sensor: Water flow sensor
Electrical demand: 220 - 240V / 50-60 Hz
Materials that can be cut: acrylic plexiglass, wood, paper, rubber, textiles, plastics
Engraveable materials: acrylic plexiglass, glass, wood, paper, rubber, plastics and many others
Size (machine / packaged): 1337x960x990mm / 1750x1040x1140
Weight (machine / packed): 190kg / 200kg
