SD Laser series 3015F fiber laser cutting machine
Shipping time :
3 months
Request for quotation

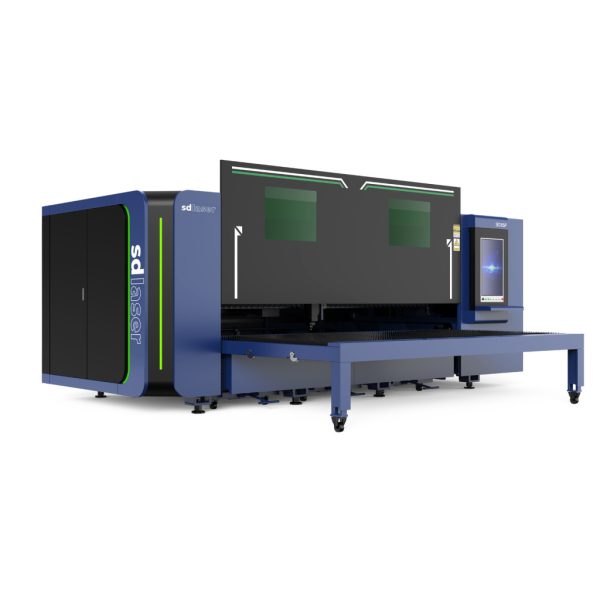

Compact, fully enclosed fiber laser cutting machine with a side-extending worktable.
The 3000x1500mm extendable worktable with motoric movement, which can be walked around on 3 sides, allows for easier loading and unloading of sheets, while a high level of occupational safety is also achieved thanks to the fully enclosed cover. The 3015F is actually the version of our 3015S open flatbed laser machine with a cover and an extendable table. It contains top-quality components and is TÜV certified, which makes it stand out from the category of cheaper Chinese laser cutters!
Practical material loading
We recommend our 3015F fiber laser cutter to businesses that need to achieve a small footprint, high level of occupational safety and fast workpiece handling at the same time. Usually, fixed 1-table laser cutters with a small footprint are installed without a cover, since a full cover would hinder the insertion of the raw material. That is why laser machines with two tables and a table change mechanism (such as the E series) have a full cover, but these are more expensive and require a larger floor space. In the case of the 3015F, however, thanks to the practical side-extendable table, even a laser cutter with a small footprint with 1 table can get a full cover. The pneumatic vertically opening door and the motorized table mechanism can be operated from the control panel with the push of a button and after loading the sheet, the laser cutting takes place under a fully closed cover. The opening of the door and the movement of the work table are monitored by an infrared gate.
Productivity and efficiency enhancing features with the SD Laser 3015F laser machine
For us, industrial quality is not enough, it is also important to provide all the innovative features available today in one machine.
• Capacitive surface tracking laser head with automatic focus
• Automatic sheet measurement with edge detection
• Infared night/day camera workspace monitoring
• Micro joint
• Laser head collision protection
• “One Click” super fast material selection and start
• Motorized work table and pneumatic side door
• Automatic nesting (sheet allocation) planner with several algorithms for efficient use of workpieces and sheet with minimal waste
• Simulation cutting for planning, standard time calculation and quotation preparation
Efficient, well-designed extraction
The SD Laser 3015F has sectional extraction zones, and the air extracted from the bottom is discharged through an extraction port at the end of the machine body. At the sectional extraction connection points, flame-retardant baffles and grilles prevent sparks and particles from causing damage to the extraction system or the machine body.
The machine body, the stable foundation of the system
The machine body is made of high-strength steel plates with groove-welded seams, which undergo multi-stage stress relief and heat treatment to ensure decades of guaranteed accuracy.
Raycus, the market leading laser source brand
Our company is committed to Raycus laser source instead of Max, BWT or other cheaper Chinese laser sources. Raycus has service centers in Germany and Italy, while other Chinese brands require the laser source to be sent back to China if it fails, which is expensive and time-consuming. Raycus not only provides a more reliable warranty and service background, but also a longer lifespan. So choose the reliable SD Laser fiber laser cutting brand with a reliable CE certified Raycus laser source!
Decide once for long term!
High-quality main parts and components, as well as the latest innovative features, characterize the SD Laser fiber laser cutting machine.
• Inovance (de) or Yaskawa (jp) servo motors and controllers
• Beitto (jp) reductor
• Raycus laser source (European version!)
• BOCHU industrial control system
• BOCHU BLT laser head
• SHAC (tw) linear rail and TWEBOLUN (tw) rack
• SMC, Schneider pneumatic and electronic components
• TÜV certificate
Precision and high performance in one device
Thanks to the high-quality main parts and the stress-free robust machine body, the mechanical positioning of the laser head is carried out with an accuracy of 0.02mm, while it is capable of speeds of up to 120m/min. Whether it is an extremely small or large workpiece, after automatic sheet metal design, our laser cutter has been used for high-precision and high-speed laser metal cutting in several shifts for several years.
From our references
A we installed this SD Laser 3015F 3 kW fiber flat laser cutting machine at our local metal industry partner of ours.
We are particularly pleased that this is the second SD LASER laser machine at our partner. After a fiber laser tube cutting machine, they have expanded their capacity with this flat laser cutter.
TÜV certified for European requirements
There are almost no Chinese laser cutting equipment on the market that has both CE and TÜV certification. We are proud that all SD Laser fiber laser cutters meet the highest requirements for reliability and safe operation. Only the TÜV certificate guarantees, for example, that the housing of your laser cutter has the appropriate OD4+ standard glazing, ensuring the appropriate protection.
18 years, lots of machine installation and experience
We have now become a leading supplier in Hungary when it comes to industrial laser cutting installations. We have installed more than 60 industrial fiber laser cutters and more than 500 industrial CO2 laser engravers since 2005. Thanks to our appropriate organizational structure and processes, as well as our Full Service service, all of our laser cutting machines are still operating without problems at our customers' sites.
Full Service: Needs assessment and site visit, quotation, logistics services, machine installation and commissioning, training and fast service.
Details
Product images and features shown may include optional items!
Specifications
Laser source power: Raycus fiber laser 1 – 6kW
Number of work tables: 1pc (can be extended to the side)
Work table size: 3000x1500mm
Maximum speed: 120m/min (1833mm/s)
Maximum acceleration: 1.2G
Return accuracy: 0.02mm/1000mm
Positioning accuracy: 0.03mm/1000mm
Control system: BOCHU, FSCUT2000E
Laser head: BOCHU BLT310
Laser head functions: Auto focus, cutting gas monitoring, protective lens monitoring, auto-recut, smart-piercing, micro-joint, capacitive distance sensor, board measurement.
Servo motors and controllers: Inovance (de)
Reducer: Beitto (jp)
*Parameters may vary depending on the specific type and configuration!
