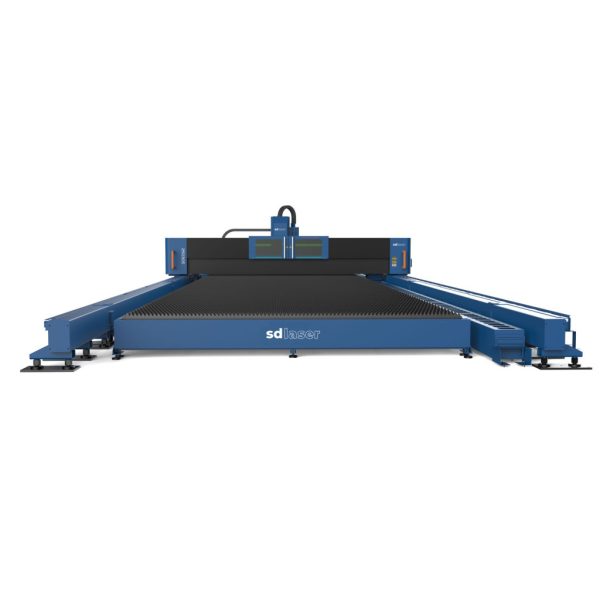

SD Laser series S GROUND RAIL fiber laser cutting machines
Shipping time :
3 months
Request for quotation
The ultra-large version of the SD S series with TÜV certification, available with a 12m long table and a 200kW fiber laser source!
The first manufacturer in the world to produce and sell a 200kW industrial fiber laser cutter in 2024!
Ground Rail – for the highest laser cutting demands
The “Ground Rail” is the solution for high-performance laser sheet metal processing. High-performance laser sources require large steel sheet sizes and weights, which exponentially increases the cost of manufacturing the laser machine, as the precise CNC system is connected to the worktable on which these heavy sheets must be placed. In the case of the S Ground Rail laser cutter, the worktable is located separately and the X-axis beam runs on separate rails with the laser head. This means that the CNC system is not affected by the extreme weight of the sheet, while a table with the required strength can be manufactured, thus reducing the cost of the final laser cutting system. So if your company has a higher, 30kW+ power requirement and a large sheet size requirement, we strongly recommend the SD S Ground Rail fiber laser series instead of the traditional closed (e.g. SD E series).
The laser cutting table and CNC system are built from sections and can be ordered in almost any length, even in sizes up to 12x2m.
Productivity and efficiency enhancing features with the SD Laser S Ground Rail Series
For us, industrial quality is not enough, it is also important to provide all the innovative features available today in one machine.
• Capacitive surface tracking laser head with automatic focus
• Automatic sheet measurement with edge detection
• Infared night/day camera workspace monitoring
• Micro joint
• Laser head collision protection
• “One Click” super fast material selection and start
• Automatic pallet change within 12-15 seconds
• Automatic nesting (sheet allocation) planner with several algorithms for efficient use of workpieces and sheet with minimal waste
• Simulation cutting for planning, standard time calculation and quotation preparation
Professional nesting software
• Cutting path optimization to shorten cutting time and reduce waste.
• Intelligent alignment algorithm with rotation to increase material utilization.
The machine body, the stable foundation of the system
The machine body is made of high-strength steel plates with groove-welded seams, which undergo multi-stage stress relief and heat treatment to ensure decades of guaranteed accuracy. In the case of our Ground Rail laser cutter, the worktable is built up in sections and unlike normal cutting machines, it can be ordered in almost any length. In fact, it can even be expanded later!
Raycus, the market leading laser source brand
Our company is committed to Raycus laser source instead of Max, BWT or other cheaper Chinese laser sources. Raycus has service centers in Germany and Italy, while other Chinese brands require the laser source to be sent back to China if it fails, which is expensive and time-consuming. Raycus not only provides a more reliable warranty and service background, but also a longer lifespan. So choose the reliable SD Laser fiber laser cutting brand with a reliable CE certified Raycus laser source!
Decide once for long term!
High-quality main parts and components, as well as the latest innovative features, characterize the SD Laser fiber laser cutting machine.
• Inovance (de) or Yaskawa (jp) servo motors and controllers
• Raycus laser source (European version!)
• BOCHU industrial control system
• BOCHU BLT laser head
• SHAC (tw) linear rail and TWEBOLUN (tw) rack
• SMC, Schneider pneumatic and electronic components
• TÜV certificate
Ultra-large laser sources, up to 200kW!
Our laser machine was the first in the world to be commissioned with a 200kW fiber laser source in 2024. Our goal is to highlight the productivity and material thickness benefits offered by higher laser sources, which can now be obtained at a more affordable cost with our Ground Rail type laser cutter. This series is available in 6kW, 12kW, 20kW, 30kW, 60kW, 120kW and 200kW powers.
Unique, closed laser head design
In the case of similar, open flatbed laser cutters, the laser head is exposed, thereby increasing occupational safety costs, for example, the equipment can only be operated in a separate, closed room. However, the SD S series has a special “mini” cover that moves with the head, isolating it as much as possible from the environment. Although it still does not match the fully closed cabin solutions (SD E series), the SD S series is safer and more advantageous from an occupational safety perspective compared to competing open fiber laser cutters.
TÜV certified for European requirements
There are almost no Chinese laser cutting equipment on the market that has both CE and TÜV certification. We are proud that all SD Laser fiber laser cutters meet the highest requirements for reliability and safe operation. Only the TÜV certificate guarantees, for example, that the housing of your laser cutter has the appropriate OD4+ standard glazing, ensuring the appropriate protection.
18 years, lots of machine installation and experience
We have now become a leading supplier in Hungary when it comes to industrial laser cutting installations. We have installed more than 60 industrial fiber laser cutters and more than 500 industrial CO2 laser engravers since 2005. Thanks to our appropriate organizational structure and processes, as well as our Full Service service, all of our laser cutting machines are still operating without problems at our customers' sites.
Full Service: Needs assessment and site visit, quotation, logistics services, machine installation and commissioning, training and fast service.
Details
Product images and features shown may include optional items!
Specifications
Laser source power: Raycus fiber laser 1.5 – 200kW
Number of work tables: 1 fixed, sectional, can be installed to almost any length.
Optional work table sizes: 1500mm, 25000mm width and up to several 10 meter lengths.
Maximum speed: 80m/min
Maximum acceleration: 1.0G
Return accuracy: 0.02mm/1000mm
Positioning accuracy: 0.03mm/1000mm
Z axis travel range: 350mm
Control system: BOCHU
Laser head: BOCHU BLT 3 – 6 series (depends on laser power)
Laser head functions: Auto focus, cutting gas monitoring, protective lens monitoring, auto-recut, smart-piercing, micro-joint, capacitive distance sensor, board measurement.
Servomotors and controllers: Inovance
*Parameters may vary depending on specific type and configuration!
